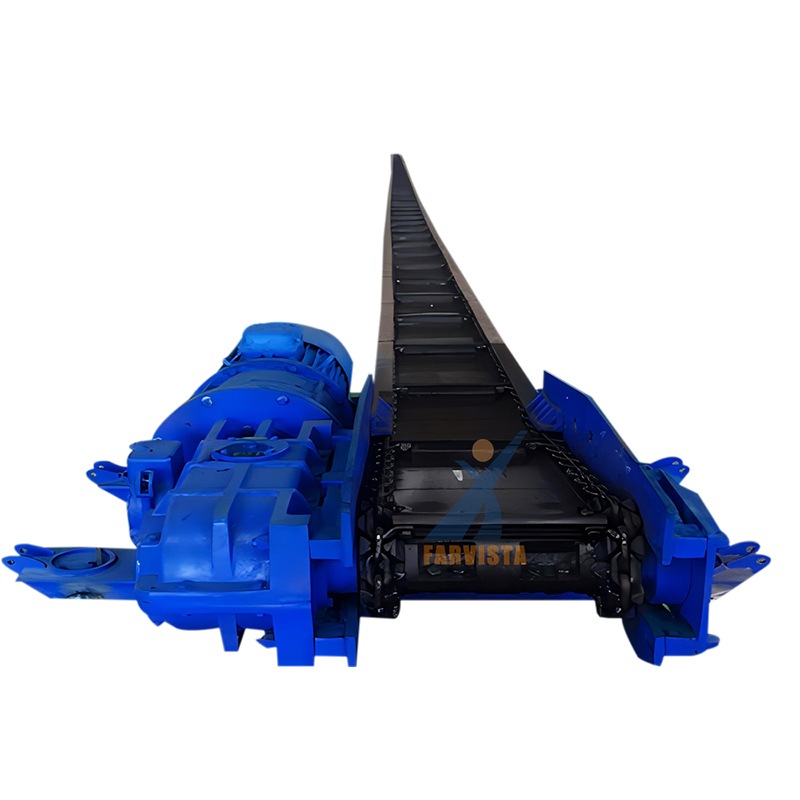

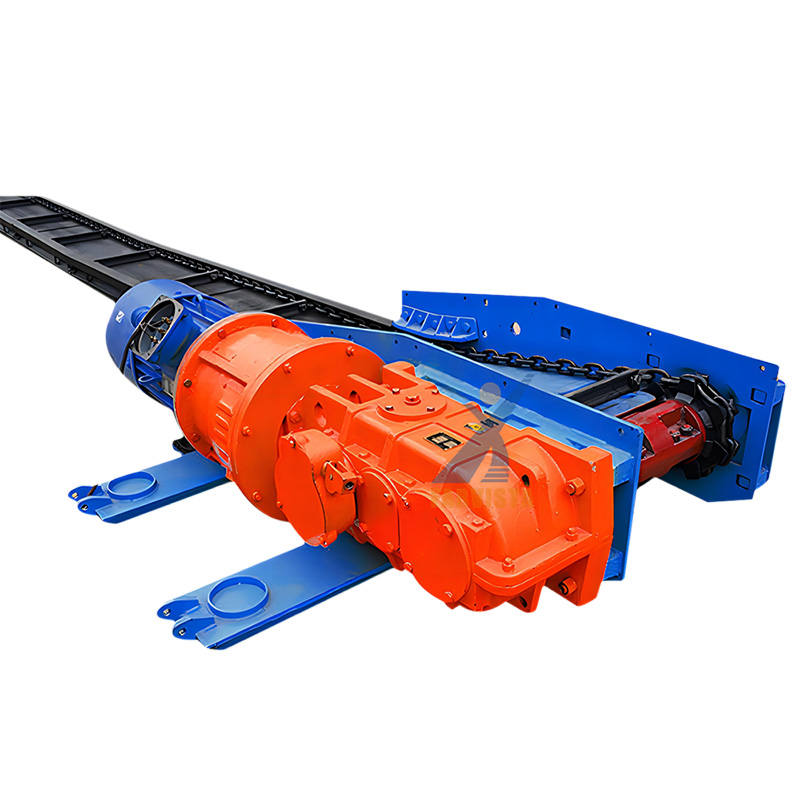

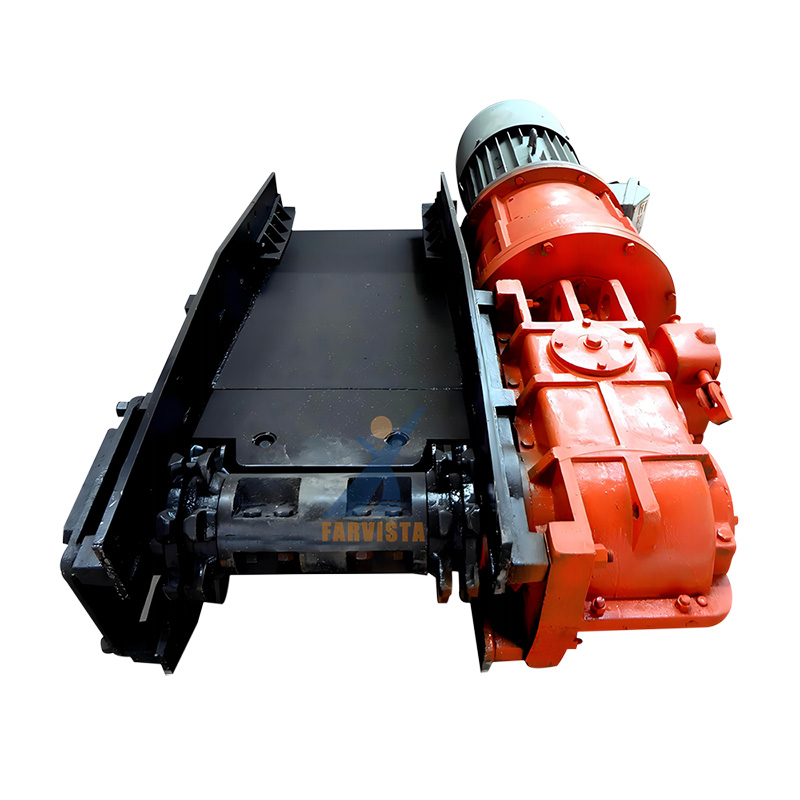

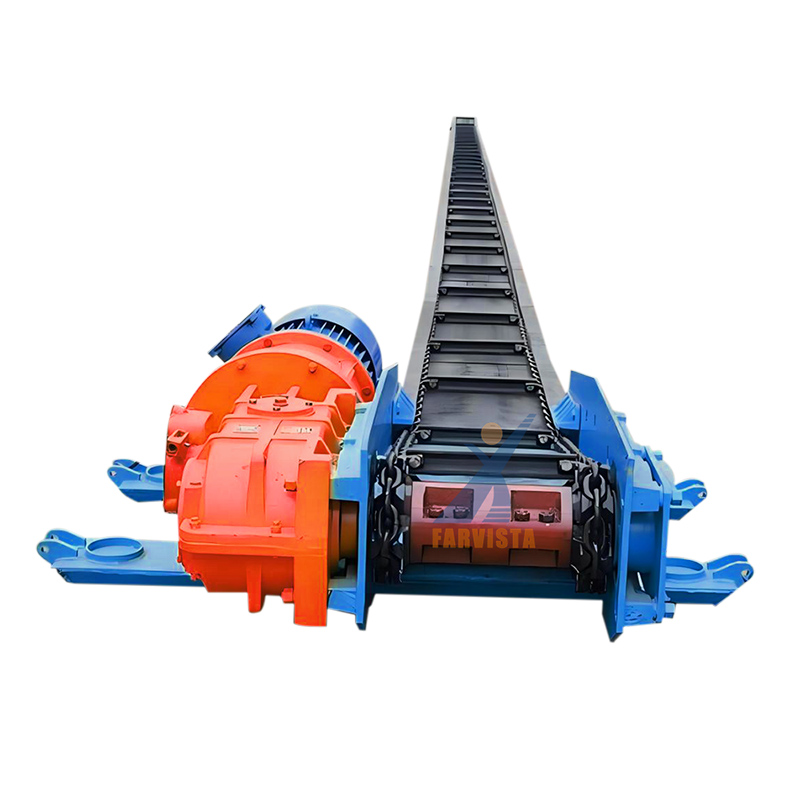

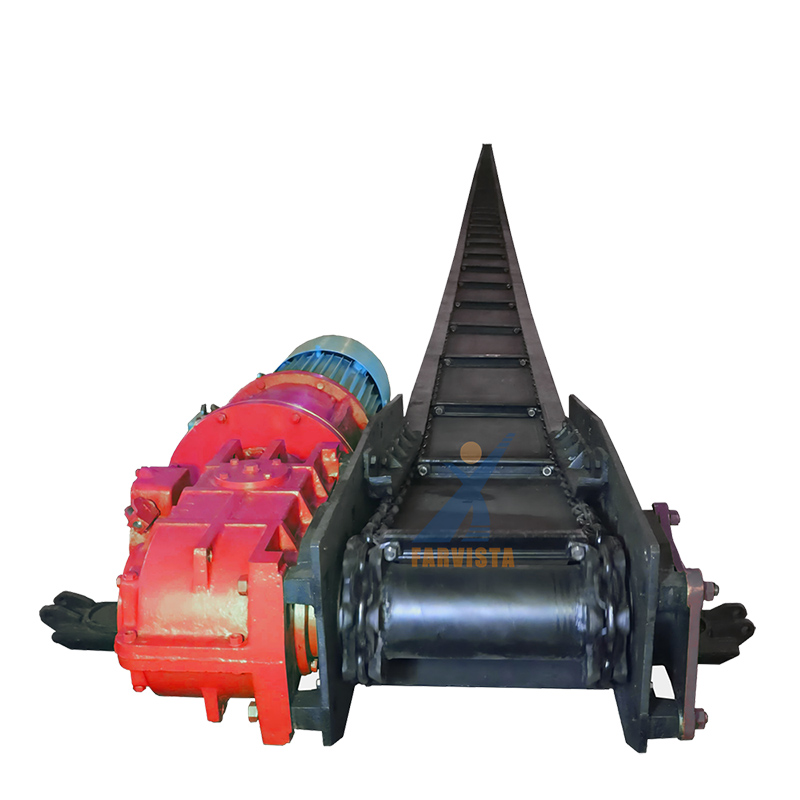

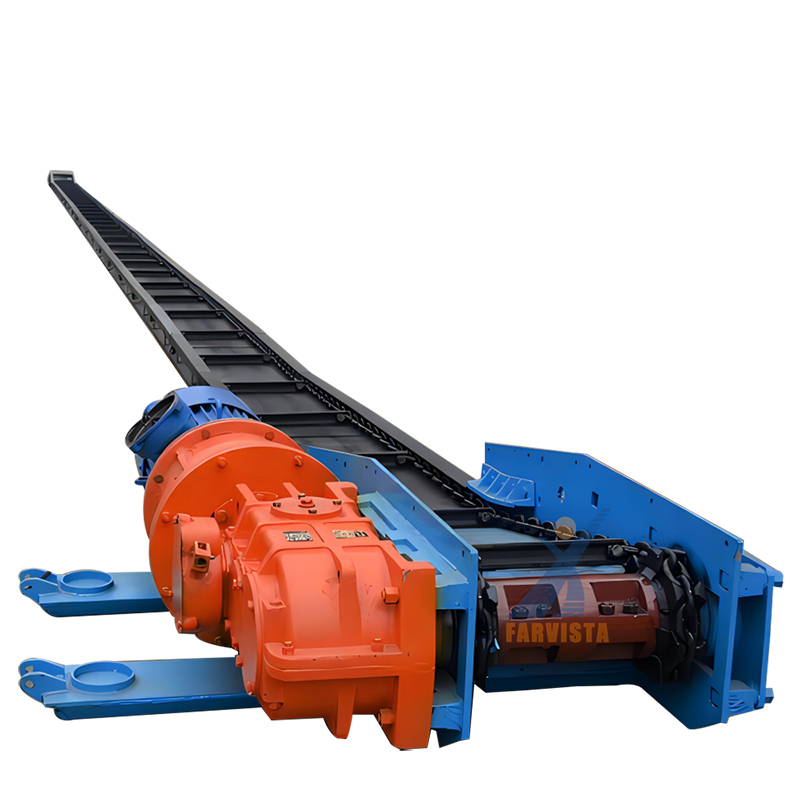

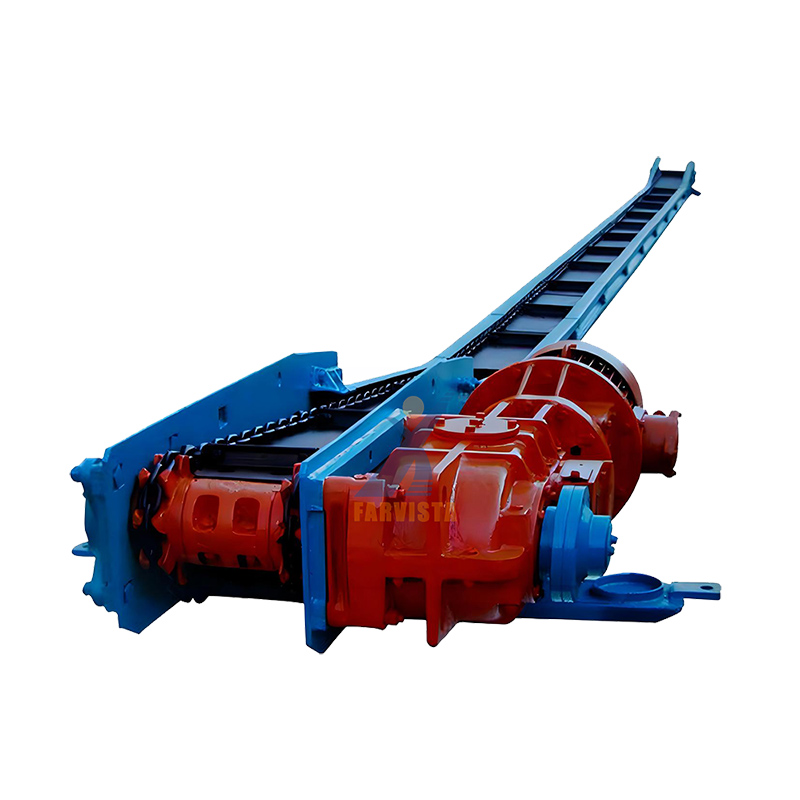

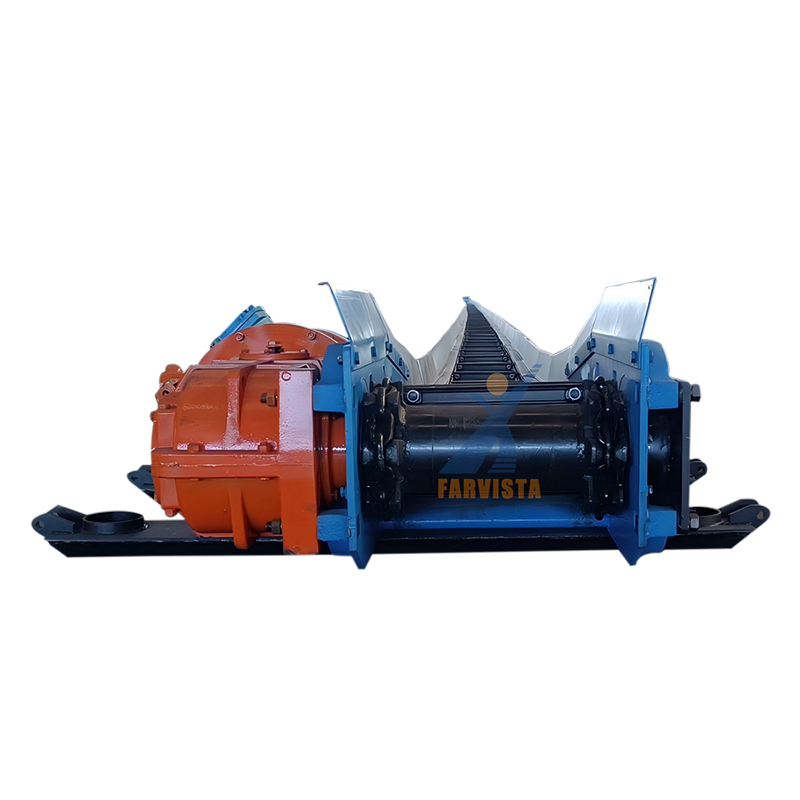

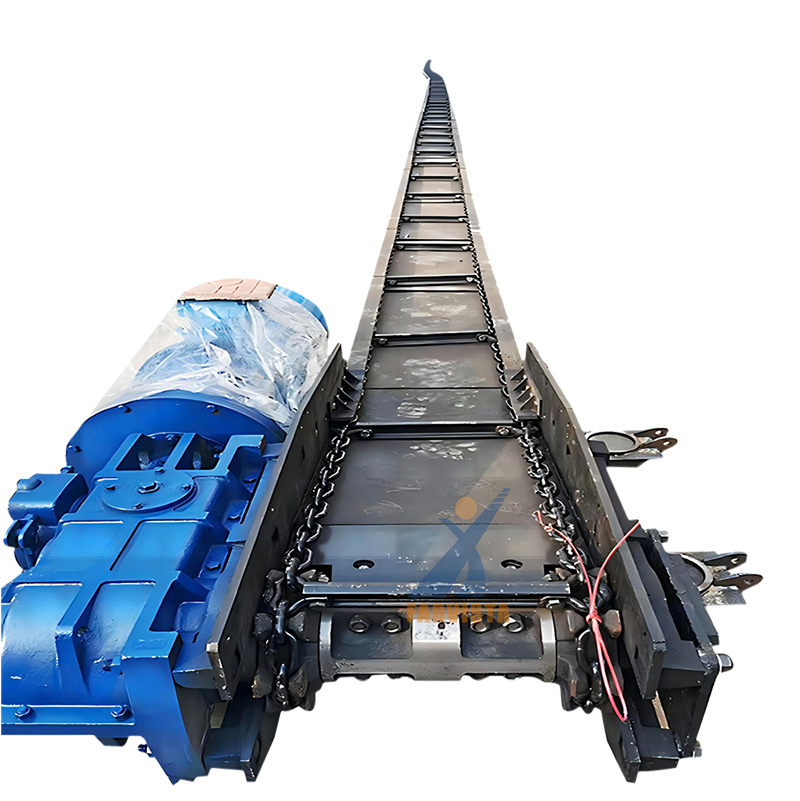

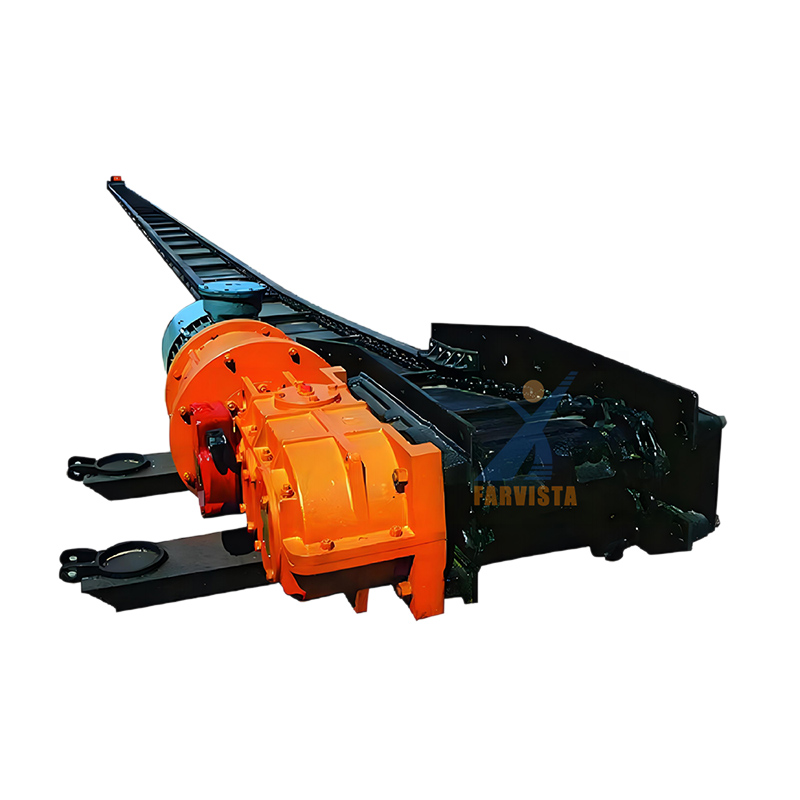

The Side Double Chain Scraper for coal mining is essential equipment used to transport materials within underground mines. Its design and features are specifically optimized for the harsh conditions of coal mining environments. Below is a detailed breakdown:
1. Definition and Function
Definition: A side double chain scraper is a type of scraper conveyor featuring a double chain system positioned on the sides. It's primarily used for the continuous transport of bulk materials in underground coal mining or similar environments.
Function:
Continuous Transport: The scraper chain moves continually, efficiently transferring materials like coal and gangue from one area to another.
High Load Capacity: The double chain design offers increased load-carrying ability, making it suitable for heavy-duty, long-distance material transport.
Versatile: This system is designed to handle the variable and challenging conditions found in underground mines, including curved or inclined roadways, ensuring reliable operation.
2. Structure and Composition
The Side Double Chain Scraper for coal mines includes these main components:
Machine Head: Contains the motor, reducer, and transmission system, which supply power to drive the scraper chain.
Middle Groove: The central part of the scraper system, made up of several connected grooves, supporting the scraper chain and aiding in material transport.
Scraper Chain: Built with a side double chain configuration, the chain includes scrapers and connecting elements that scrape and move materials.
Tail Section: Includes sprockets and a tensioning device, used to control the scraper chain's tension and maintain proper guidance throughout its movement.
3. Working Principle
The side double chain scraper functions by using an electric motor to power a reducer, which rotates the chain wheel. This movement drives the scraper chain through the central trough. The scrapers attached to the chain lift materials from the front and move them to the rear, enabling continuous transport of materials throughout the system.
4. Features and Advantages
High Load Capacity: The side double chain design provides increased stability, enabling the scraper to handle heavy material loads effectively.
Adaptability: It can perform well in challenging environments such as inclined or curved roadways, with excellent resistance to impact and wear.
Ease of Maintenance: The scraper’s straightforward design simplifies upkeep, helping reduce both maintenance time and costs.
Smooth Operation: Equipped with advanced transmission and tensioning systems, it ensures stable performance with minimal vibrations and noise.
5. Application Examples
Side double chain scrapers are widely used in underground coal mine systems, assisting in tasks like coal extraction, roadway development, and face advancement. They enhance safety and efficiency while lowering labor demands and costs.
6. Maintenance and Upkeep
Routine maintenance is essential to keep the scraper running efficiently and extend its service life. This includes inspecting the scraper chain for wear, checking fasteners, and ensuring the transmission system is properly lubricated. Worn or damaged components should be replaced promptly, and the scraper should be kept clean and dry to prevent corrosion.
